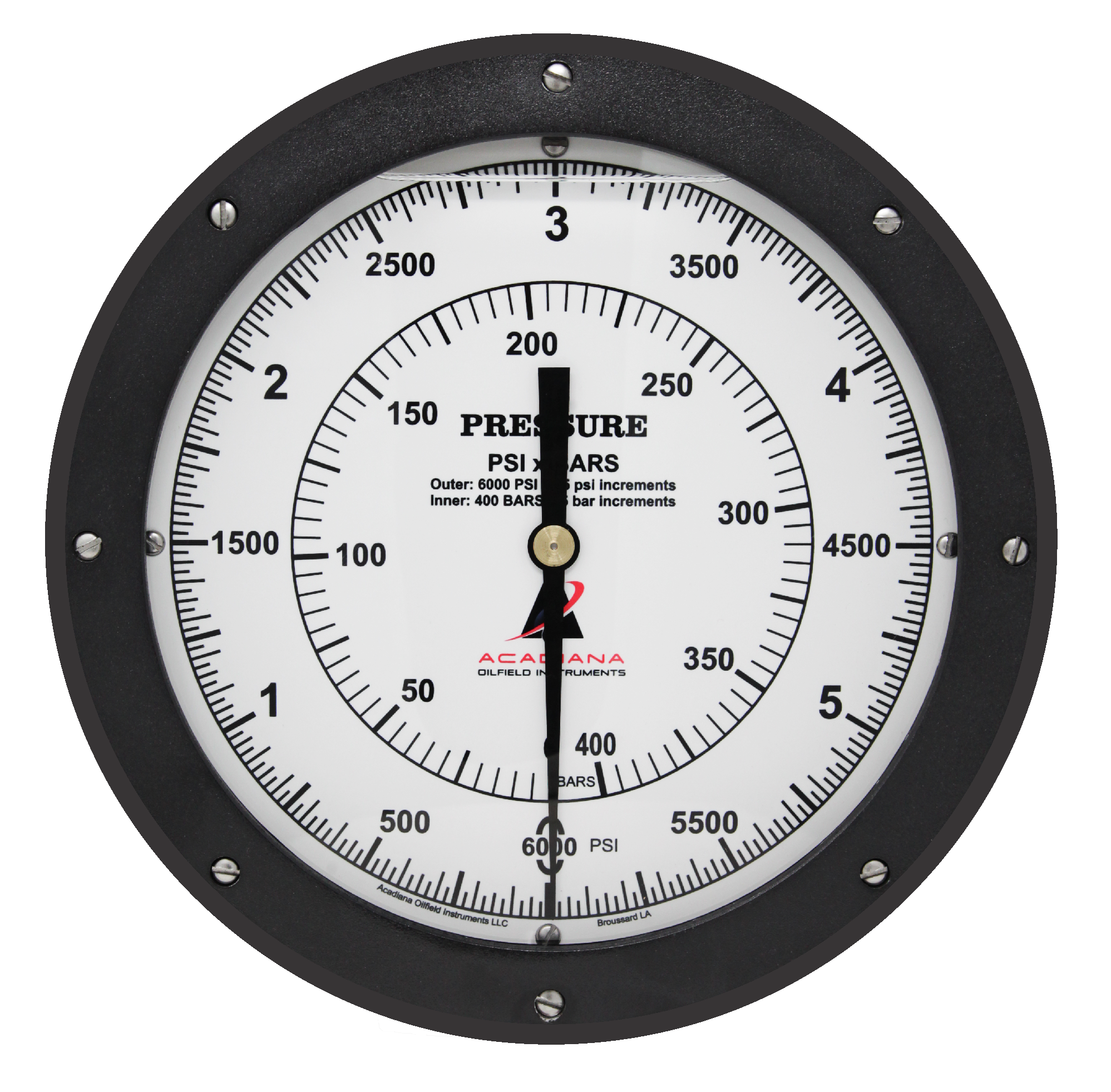

CHOKE GAUGE

Acadiana Oilfield Instruments choke gauges help expose

mud pump operation

complications.

AOI's

choke gauge is very versatile and can be mounted on the mud pump, in the driller's console or in a weight indicator box.
Drillers-Console
Drillers-Console
Benefits
  • Fluid filled dial 6" or 8-1/2" dial face for easy reading
  • Includes an operator adjustable high pressure damper which provides for accurate readings
  • Can handle any environment with protection provided by the fluid inside the gauge
  • Small pressure changes are indicated with the full 360° dial calibration with fine increments
  • Easily mountable: driller's console, on the choke manifold or in a weight indicator box
Features
  • Small pressure changes of 10 to 20 PSI can be detected
  • Pointer sensitivity regulated by the high pressure damper stem
When Ordering Indicate:
  • Gauge capacity
  • Gauge mounting
  • Units of measure
